DEWALT 20V MAX XR 7-1/4" Circular Saw (DCS590) – Maximum Cutting Power. Pro-Grade Precision. Built for Demanding Jobsites.*

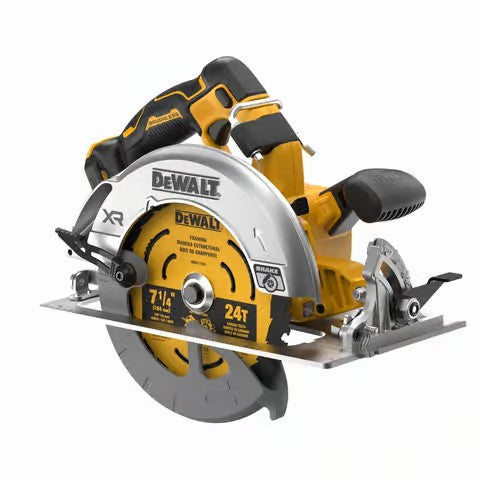

Meet DEWALT’s most powerful 20V MAX* circular saw — the DCS590 XR 7-1/4" Circular Saw. Designed to dominate tough applications, this high-performance tool delivers up to 1,700 MWO (Max Watts Out) and up to 368 cuts per charge, making it the ultimate cordless solution for framing, ripping, and cross-cutting on demanding jobsites.

At the heart of the saw is a robust brushless motor that powers through material at up to 5,500 RPM (no-load) for clean, consistent, and accurate cuts. The right-side blade orientation and optimized top-handle design provide excellent visibility and control, even in challenging positions.

Built for versatility and precision, it features a 2-9/16" max depth of cut at 90° and 2" at 45°, with a 57° bevel capacity and positive stops at 45° and 22.5° — perfect for angled cuts across a wide range of materials.

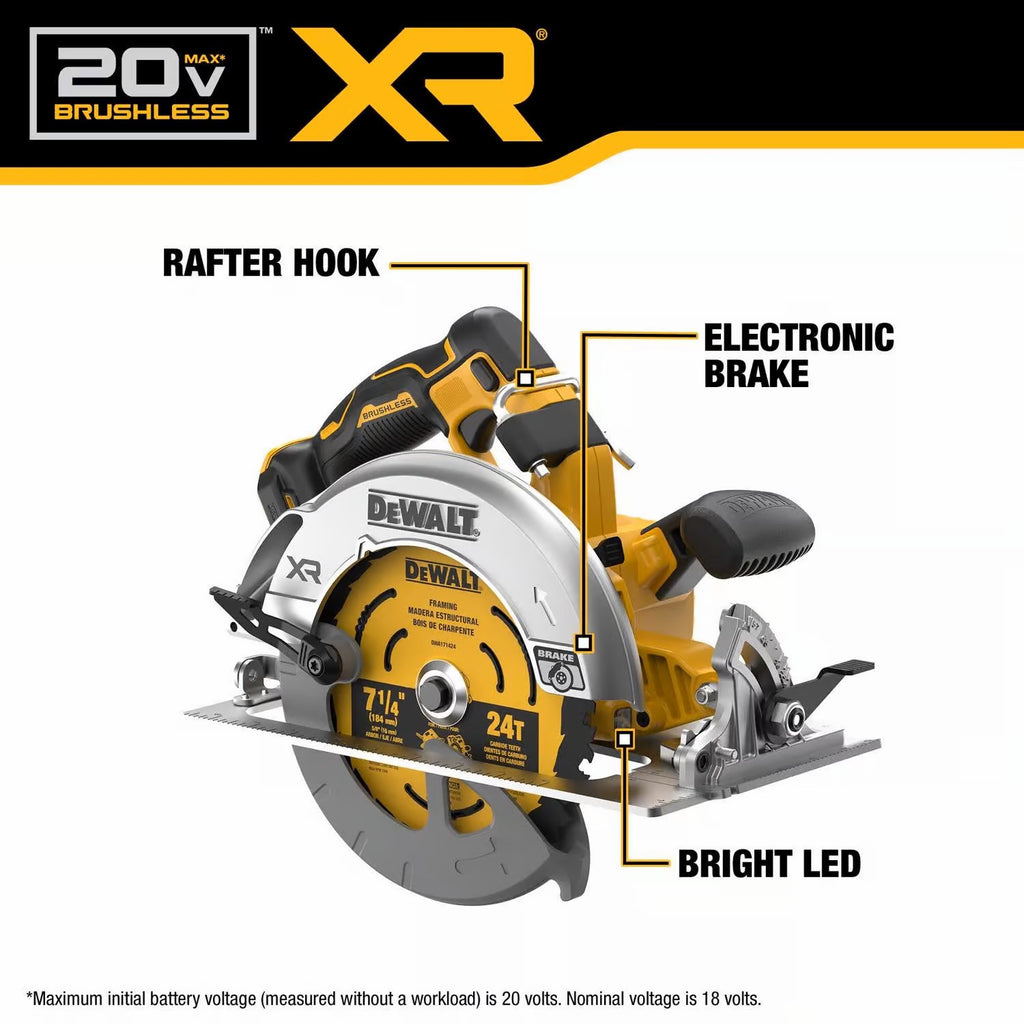

For added safety, the electronic brake stops the blade quickly once the trigger is released, helping to reduce kickback and improve accuracy. An integrated LED brightens your work area, and the built-in rafter hook ensures easy, secure storage on-site.

🛠️ Key Features:

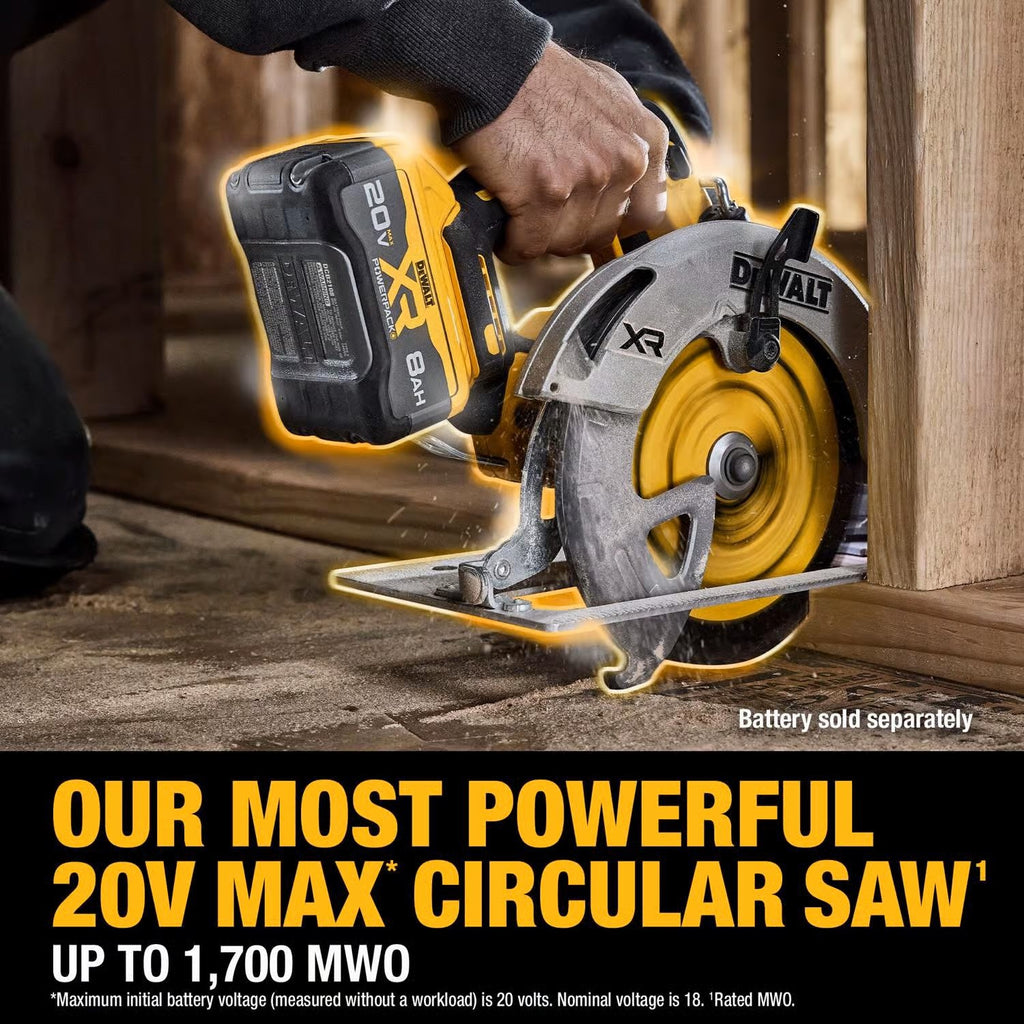

• ⚡ Unmatched Cordless Power: Up to 1,700 MWO for cutting through tough materials with ease



• 🔋 Up to 368 Cuts Per Charge: Brushless motor delivers 5,500 RPM and long-lasting runtime

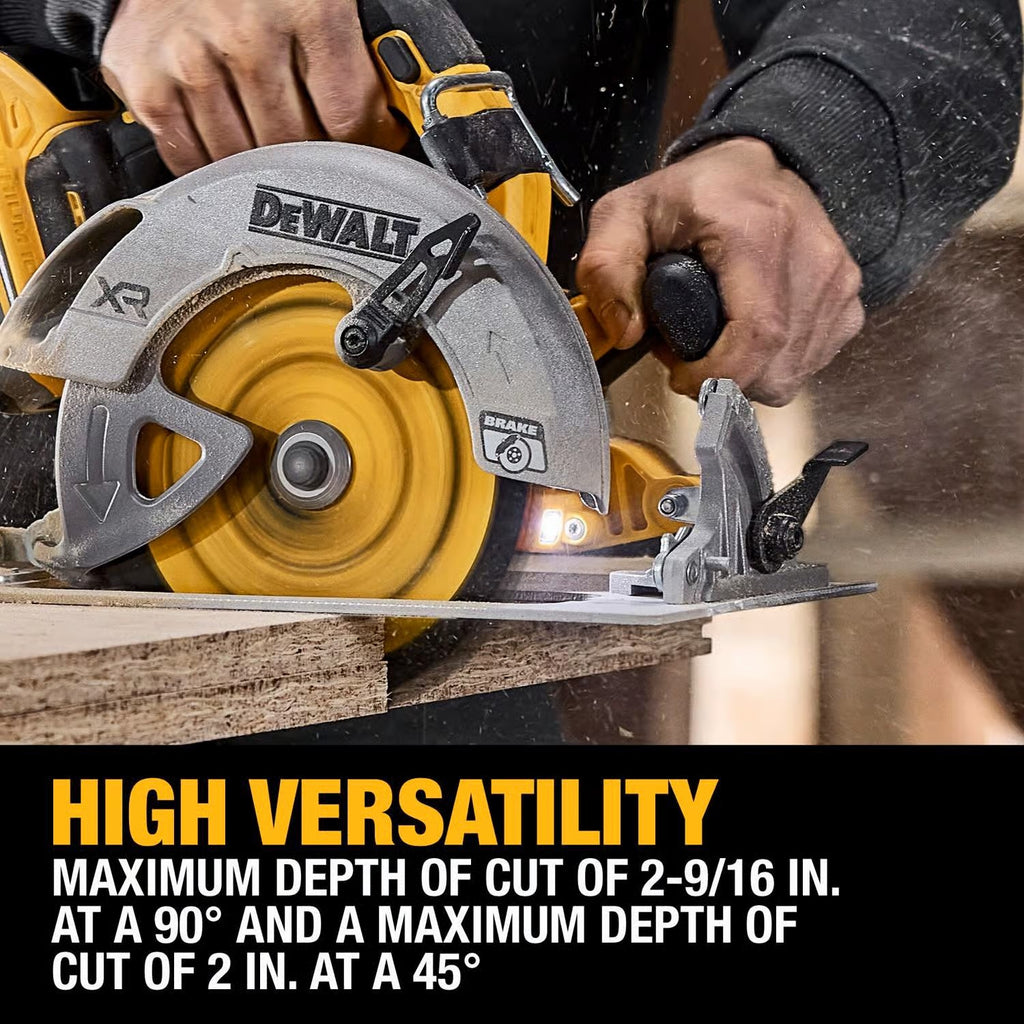

• 📐 High-Capacity Cutting Depth: 2-9/16" at 90°, 2" at 45°, with a bevel capacity up to 57°



• 🛑 Electronic Brake: Stops blade quickly for safer, more controlled cuts



• ✨ LED Work Light: Improves visibility in low-light conditions for precise cutting



• 🧰 Integrated Rafter Hook: Convenient on-site storage between cuts



• 🌪️ Dust Control Ready: Compatible with DEWALT AirLock™ system and 35mm dust extractors (sold separately)



• 📱 Tool Connect™ Chip-Ready: Track and manage your tool with optional chip and Site Manager app



• 🔄 Full System Compatibility: Works with all DEWALT 20V MAX and FLEXVOLT® batteries* (battery and charger sold separately)



Whether you're building from the ground up or making precise finish cuts, the DEWALT DCS590 XR Circular Saw delivers the power, control, and runtime you need — job after job.

Maximum power. Extreme precision. Built for the toughest pros.

Dimensions

Blade Diameter (in.)  7-1/4 in

Product Depth (in.)  15.35 in

Product Height (in.)  10.808 in

Product Width (in.)  8.19 in

Product Weight (lb.)  7.5 lb
